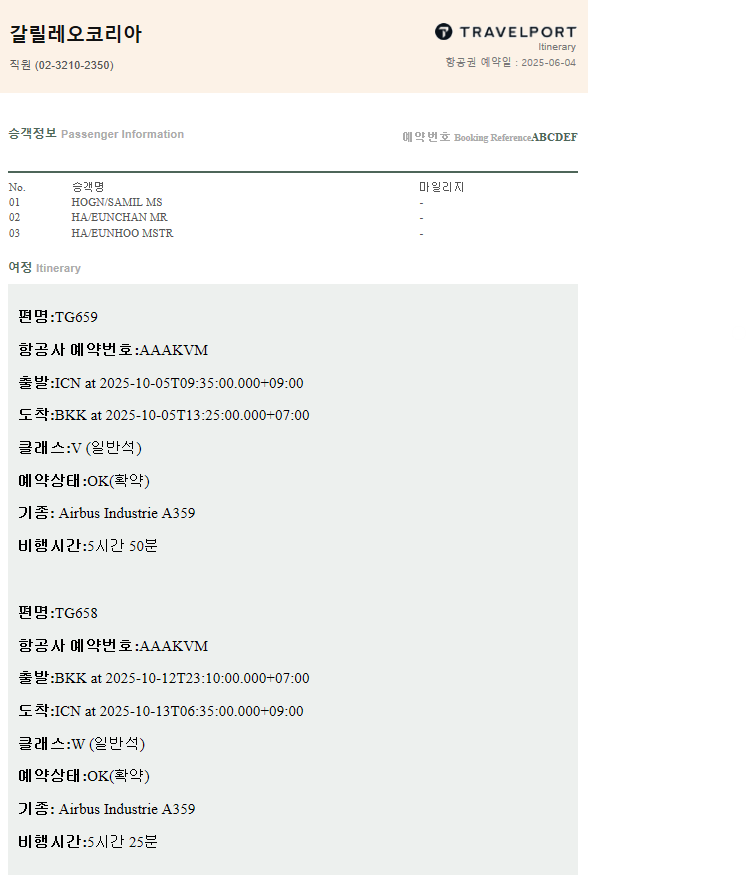

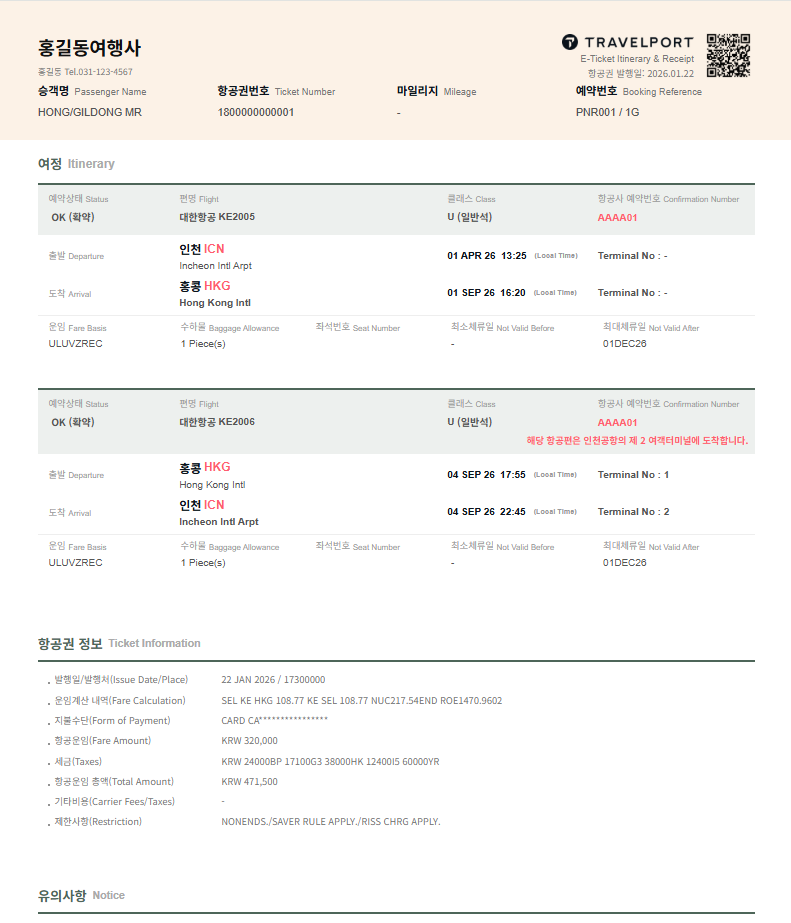

여정표/ETR – Galileo uAPI 메뉴얼

UniversalRecordRetrieve

Endpoint : https://apac.universal-api.pp.travelport.com/B2BGateway/connect/uAPI/UniversalRecordService

Overview:

UniversalRecordRetrieve 로 PNR 정보와 발권이 되어 있으면 기본적인 발권사항을 조회 할 수 있습니다.

Universal Record 는 Travelort PNR 상위 예약코드
ProviderReservationInfo 의 LocatorCode는 1G 의 Host Level PNR(일반적인 의미의 예약 PNR 입니다.)
AirReservation LocatoCode는 발권용 코드
SupplierLocatorCoe : 항공사 PNR

기본 조회

UniversalRecordLocatorCode : UniversalRecord code 로 조회
ProviderLocatorCode: GDS GDS Host Locator Code 로 조회

ViewOnlyInd (default : false)

true : PNR을 처음 UR 로을 실행할때 UR 저장하지 않은 상태에서 확인용 옵션(UR 생성 이전 한번만 사용가능)
false : UR 레코드 생성(저장) 및 UniversalModify 용도
false 사용후 다시 true 시 : ‘ViewOnly’ retrieval of a PNR already existing in a UR is not possible. Sync is done.


<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
                  xmlns:univ="http://www.travelport.com/schema/universal_v52_0"
                  xmlns:com="http://www.travelport.com/schema/common_v52_0">
   <soapenv:Header>
      <univ:SupportedVersions/>
   </soapenv:Header>
   <soapenv:Body>
      <univ:UniversalRecordRetrieveReq TraceId="trace" AuthorizedBy="user" TargetBranch="P*******"  RetrieveProviderReservationDetails="true" ViewOnlyInd="false">
         <com:BillingPointOfSaleInfo OriginApplication="UAPI"/>
         <!--You have a CHOICE of the next 2 items at this level-->
         <!--univ:UniversalRecordLocatorCode>0Y9G8T</univ:UniversalRecordLocatorCode-->
         <univ:ProviderReservationInfo ProviderCode="1G" ProviderLocatorCode="66TG6Z" />
      </univ:UniversalRecordRetrieveReq>
   </soapenv:Body>
</soapenv:Envelope>

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"

xmlns:univ="http://www.travelport.com/schema/universal_v52_0"

xmlns:com="http://www.travelport.com/schema/common_v52_0">

<soapenv:Header>

<univ:SupportedVersions/>

</soapenv:Header>

<soapenv:Body>

<univ:UniversalRecordRetrieveReq TraceId="trace" AuthorizedBy="user" TargetBranch="P*******" RetrieveProviderReservationDetails="true" ViewOnlyInd="false">

<com:BillingPointOfSaleInfo OriginApplication="UAPI"/>

<univ:ProviderReservationInfo ProviderCode="1G" ProviderLocatorCode="66TG6Z" />

</univ:UniversalRecordRetrieveReq>

</soapenv:Body>

</soapenv:Envelope>

UniversalRecordRetrieveRsp


<SOAP:Envelope xmlns:SOAP="http://schemas.xmlsoap.org/soap/envelope/">
    <SOAP:Body>
        <universal:UniversalRecordRetrieveRsp xmlns:universal="http://www.travelport.com/schema/universal_v52_0" xmlns:common_v52_0="http://www.travelport.com/schema/common_v52_0"     xmlns:air="http://www.travelport.com/schema/air_v52_0"  TraceId="trace" TransactionId="498CBCC40A0E7DE21E024FCA8F8FFF57" ResponseTime="2439">
            <universal:UniversalRecord LocatorCode="2K744P" Version="4" Status="Active">
                <common_v52_0:BookingTraveler Key="RRXV3cXAuDKAvco26BAAAA==">
                    <common_v52_0:BookingTravelerName First="SAMIL MS" Last="HOGN"/>
                    <common_v52_0:PhoneNumber Key="RRXV3cXAuDKAwco26BAAAA==" Type="Home" Location="SEL" Number="010 9804 7777">
                        <common_v52_0:ProviderReservationInfoRef Key="RRXV3cXAuDKAX4j26BAAAA=="/>
                    </common_v52_0:PhoneNumber>
                    <common_v52_0:PhoneNumber Key="RRXV3cXAuDKAxco26BAAAA==" Type="Email" Location="SEL" Number="sky0000@naver.com">
                        <common_v52_0:ProviderReservationInfoRef Key="RRXV3cXAuDKAX4j26BAAAA=="/>
                    </common_v52_0:PhoneNumber>
                    <common_v52_0:SSR Key="oqeT3ci3nDKAq2PwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880049C1" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>
                    <common_v52_0:SSR Key="oqeT3ci3nDKAr2PwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880049C2" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>

                </common_v52_0:BookingTraveler>
                <common_v52_0:BookingTraveler Key="RRXV3cXAuDKAyco26BAAAA==">
                    <common_v52_0:BookingTravelerName First="EUNCHAN MR" Last="HA"/>
                    <common_v52_0:SSR Key="oqeT3ci3nDKA7+PwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880803C1" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>
                    <common_v52_0:SSR Key="oqeT3ci3nDKA8+PwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880803C2" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>

                </common_v52_0:BookingTraveler>
                <common_v52_0:BookingTraveler Key="RRXV3cXAuDKAzco26BAAAA==">
                    <common_v52_0:BookingTravelerName First="EUNHOO MSTR" Last="HA"/>
                    <common_v52_0:SSR Key="oqeT3ci3nDKAYaSwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880821C1" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>
                    <common_v52_0:SSR Key="oqeT3ci3nDKAZaSwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880821C2" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>

                    <common_v52_0:NameRemark Key="RRXV3cXAuDKA0co26BAAAA==">
                        <common_v52_0:RemarkData>P-C10 DOB13MAY15</common_v52_0:RemarkData>
                        <common_v52_0:ProviderReservationInfoRef Key="RRXV3cXAuDKAX4j26BAAAA=="/>
                    </common_v52_0:NameRemark>
                </common_v52_0:BookingTraveler>
                <common_v52_0:ServiceFeeInfo Key="oqeT3ci3nDKA18OwjLAAAA==" Confirmation="9540057998111" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TotalAmount="KRW30000" BookingTravelerName="HA/EUNCHAN MR"/>
                <common_v52_0:ServiceFeeInfo Key="oqeT3ci3nDKA28OwjLAAAA==" Confirmation="9540057998110" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TotalAmount="KRW30000" BookingTravelerName="HOGN/SAMIL MS"/>
                <common_v52_0:ServiceFeeInfo Key="oqeT3ci3nDKA38OwjLAAAA==" Confirmation="9540057998112" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TotalAmount="KRW30000" BookingTravelerName="HA/EUNHOO MSTR"/>
                <common_v52_0:ActionStatus Key="RRXV3cXAuDKArco26BAAAA==" Type="ACTIVE" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ProviderCode="1G">
                    <common_v52_0:Remark>SEL 05JUN0249Z E7 AG</common_v52_0:Remark>
                </common_v52_0:ActionStatus>
                <universal:ProviderReservationInfo Key="RRXV3cXAuDKAX4j26BAAAA==" ProviderCode="1G" LocatorCode="ABCDEF" CreateDate="2025-06-04T09:54:27.693+00:00" ModifiedDate="2025-06-07T08:40:51.766+00:00" HostCreateDate="2025-06-04" OwningPCC="7R4N">
                    <universal:ProviderReservationDisplayDetailsList>
                        <universal:DisplayDetails ProviderReservationDetail="true">
                            <universal:DisplayDetail Name="OwningAgencyPCC" Value="7R4N"/>
                            <universal:DisplayDetail Name="CreatingAgentSignOn" Value="7R4NS1"/>
                            <universal:DisplayDetail Name="CreatingAgentDuty" Value="AG"/>
                            <universal:DisplayDetail Name="CreatingAgencyIATA" Value="17305304"/>
                            <universal:DisplayDetail Name="PrepaidTicketAdviceIndicator" Value="N"/>
                            <universal:DisplayDetail Name="BFBorrowed" Value="N"/>
                            <universal:DisplayDetail Name="GlobalPNR" Value="N"/>
                            <universal:DisplayDetail Name="PastDateQuickRetrievedPNR" Value="N"/>
                            <universal:DisplayDetail Name="PNRPurgeDate" Value="20251014"/>
                            <universal:DisplayDetail Name="OriginalReceivedFieldValue" Value="P"/>
                        </universal:DisplayDetails>
                    </universal:ProviderReservationDisplayDetailsList>
                </universal:ProviderReservationInfo>
                <air:AirReservation xmlns:air="http://www.travelport.com/schema/air_v52_0" xmlns:common_v52_0="http://www.travelport.com/schema/common_v52_0"  LocatorCode="AAAA4Q" CreateDate="2025-06-04T09:54:27.414+00:00" ModifiedDate="2025-06-07T08:40:51.766+00:00">
                    <common_v52_0:SupplierLocator SupplierCode="TG" SupplierLocatorCode="AAAKVM" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" CreateDateTime="2025-06-04T08:16:00.000+00:00"/>

                    <common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAvco26BAAAA=="/>
                    <common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAyco26BAAAA=="/>
                    <common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAzco26BAAAA=="/>
                    <common_v52_0:ProviderReservationInfoRef Key="RRXV3cXAuDKAX4j26BAAAA=="/>
                    <air:AirSegment Key="RRXV3cXAuDKA3co26BAAAA==" Group="0" Carrier="TG" CabinClass="Economy" FlightNumber="659" ProviderCode="1G" Origin="ICN" Destination="BKK" DepartureTime="2025-10-05T09:35:00.000+09:00" ArrivalTime="2025-10-05T13:25:00.000+07:00" TravelTime="350" ClassOfService="V" ETicketability="No" Equipment="359" Status="HK" ChangeOfPlane="false" GuaranteedPaymentCarrier="No" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TravelOrder="1" ProviderSegmentOrder="1" OptionalServicesIndicator="false">
                        <air:FlightDetails Key="oqeT3ci3nDKA4dUwjLAAAA==" Origin="ICN" Destination="BKK" DepartureTime="2025-10-05T09:35:00.000+09:00" ArrivalTime="2025-10-05T13:25:00.000+07:00" FlightTime="350" TravelTime="350" Equipment="359" OriginTerminal="1" AutomatedCheckin="false" ElStat="A"/>
                    </air:AirSegment>
                    <air:AirSegment Key="RRXV3cXAuDKA7co26BAAAA==" Group="1" Carrier="TG" CabinClass="Economy" FlightNumber="658" ProviderCode="1G" Origin="BKK" Destination="ICN" DepartureTime="2025-10-12T23:10:00.000+07:00" ArrivalTime="2025-10-13T06:35:00.000+09:00" TravelTime="325" ClassOfService="W" ETicketability="No" Equipment="359" Status="HK" ChangeOfPlane="false" GuaranteedPaymentCarrier="No" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TravelOrder="2" ProviderSegmentOrder="2" OptionalServicesIndicator="false">
                        <air:FlightDetails Key="oqeT3ci3nDKA5dUwjLAAAA==" Origin="BKK" Destination="ICN" DepartureTime="2025-10-12T23:10:00.000+07:00" ArrivalTime="2025-10-13T06:35:00.000+09:00" FlightTime="325" TravelTime="325" Equipment="359" DestinationTerminal="1" AutomatedCheckin="false" ElStat="A"/>
                    </air:AirSegment>
                    <air:AirPricingInfo Key="oqeT3ci3nDKA48OwjLAAAA==" TotalPrice="KRW514500" BasePrice="KRW473100" ApproximateTotalPrice="KRW514500" ApproximateBasePrice="KRW473100" Taxes="KRW41400" PricingMethod="ManualFare" ETicketability="No" ProviderCode="1G" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" AirPricingInfoGroup="1" Ticketed="true" PricingType="StoredFare" ElStat="A" FareCalculationInd="B">
                        <air:FareInfo Key="oqeT3ci3nDKAl2PwjLAAAA==" FareBasis="VLRST" PassengerTypeCode="ADT" Origin="ICN" Destination="BKK" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-05" NotValidAfter="2025-10-05" ElStat="A">
                            <air:BaggageAllowance>
                                <air:MaxWeight Value="25" Unit="Kilograms"/>
                            </air:BaggageAllowance>
                        </air:FareInfo>
                        <air:FareInfo Key="oqeT3ci3nDKAn2PwjLAAAA==" FareBasis="WLRSV" PassengerTypeCode="ADT" Origin="BKK" Destination="ICN" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-12" NotValidAfter="2025-10-12" ElStat="A">
                            <air:BaggageAllowance>
                                <air:MaxWeight Value="25" Unit="Kilograms"/>
                            </air:BaggageAllowance>
                        </air:FareInfo>
                        <air:BookingInfo BookingCode="V" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAl2PwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA=="/>
                        <air:BookingInfo BookingCode="W" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAn2PwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA=="/>
                        <air:TaxInfo Category="XP" Amount="KRW41400" Key="oqeT3ci3nDKAp2PwjLAAAA=="/>
                        <air:FareCalc>SEL TG BKK 174.39 TG SEL 158.53 NUC332.92 END ROE1420.87694</air:FareCalc>
                        <air:PassengerType Code="ADT" BookingTravelerRef="RRXV3cXAuDKAvco26BAAAA==">
                            <air:FareGuaranteeInfo GuaranteeType="ManualFare"/>
                        </air:PassengerType>
                        <common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAvco26BAAAA=="/>
                        <air:PaymentRef Key="oqeT3ci3nDKA/tNwjLAAAA=="/>
                        <air:TicketingModifiersRef Key="oqeT3ci3nDKAK2PwjLAAAA=="/>
                    </air:AirPricingInfo>
                    <air:AirPricingInfo Key="oqeT3ci3nDKAt2PwjLAAAA==" TotalPrice="KRW514500" BasePrice="KRW473100" ApproximateTotalPrice="KRW514500" ApproximateBasePrice="KRW473100" Taxes="KRW41400" PricingMethod="ManualFare" ETicketability="No" ProviderCode="1G" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" AirPricingInfoGroup="2" Ticketed="true" PricingType="StoredFare" ElStat="A" FareCalculationInd="B">
                        <air:FareInfo Key="oqeT3ci3nDKAg+PwjLAAAA==" FareBasis="VLRST" PassengerTypeCode="ADT" Origin="ICN" Destination="BKK" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-05" NotValidAfter="2025-10-05" ElStat="A">
                            <air:BaggageAllowance>
                                <air:MaxWeight Value="25" Unit="Kilograms"/>
                            </air:BaggageAllowance>
                        </air:FareInfo>
                        <air:FareInfo Key="oqeT3ci3nDKAi+PwjLAAAA==" FareBasis="WLRSV" PassengerTypeCode="ADT" Origin="BKK" Destination="ICN" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-12" NotValidAfter="2025-10-12" ElStat="A">
                            <air:BaggageAllowance>
                                <air:MaxWeight Value="25" Unit="Kilograms"/>
                            </air:BaggageAllowance>
                        </air:FareInfo>
                        <air:BookingInfo BookingCode="V" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAg+PwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA=="/>
                        <air:BookingInfo BookingCode="W" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAi+PwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA=="/>
                        <air:TaxInfo Category="XP" Amount="KRW41400" Key="oqeT3ci3nDKA6+PwjLAAAA=="/>
                        <air:FareCalc>SEL TG BKK 174.39 TG SEL 158.53 NUC332.92 END ROE1420.87694</air:FareCalc>
                        <air:PassengerType Code="ADT" BookingTravelerRef="RRXV3cXAuDKAyco26BAAAA==">
                            <air:FareGuaranteeInfo GuaranteeType="ManualFare"/>
                        </air:PassengerType>
                        <common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAyco26BAAAA=="/>
                        <air:PaymentRef Key="oqeT3ci3nDKAiDOwjLAAAA=="/>
                        <air:TicketingModifiersRef Key="oqeT3ci3nDKA79PwjLAAAA=="/>
                    </air:AirPricingInfo>
                    <air:AirPricingInfo Key="oqeT3ci3nDKAQuRwjLAAAA==" TotalPrice="KRW396200" BasePrice="KRW354800" ApproximateTotalPrice="KRW396200" ApproximateBasePrice="KRW354800" Taxes="KRW41400" PricingMethod="ManualFare" ETicketability="No" ProviderCode="1G" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" AirPricingInfoGroup="3" Ticketed="true" PricingType="StoredFare" ElStat="A" FareCalculationInd="B">
                        <air:FareInfo Key="oqeT3ci3nDKAIYSwjLAAAA==" FareBasis="VLRST" PassengerTypeCode="ADT" Origin="ICN" Destination="BKK" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-05" NotValidAfter="2025-10-05" ElStat="A">
                            <air:FareTicketDesignator Value="CH"/>
                            <air:BaggageAllowance>
                                <air:MaxWeight Value="25" Unit="Kilograms"/>
                            </air:BaggageAllowance>
                        </air:FareInfo>
                        <air:FareInfo Key="oqeT3ci3nDKAJaSwjLAAAA==" FareBasis="WLRSV" PassengerTypeCode="ADT" Origin="BKK" Destination="ICN" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-12" NotValidAfter="2025-10-12" ElStat="A">
                            <air:FareTicketDesignator Value="CH"/>
                            <air:BaggageAllowance>
                                <air:MaxWeight Value="25" Unit="Kilograms"/>
                            </air:BaggageAllowance>
                        </air:FareInfo>
                        <air:BookingInfo BookingCode="V" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAIYSwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA=="/>
                        <air:BookingInfo BookingCode="W" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAJaSwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA=="/>
                        <air:TaxInfo Category="XP" Amount="KRW41400" Key="oqeT3ci3nDKATaSwjLAAAA=="/>
                        <air:FareCalc>SEL TG BKK 130.79 TG SEL 118.90 NUC249.69 END ROE1420.87694</air:FareCalc>
                        <air:PassengerType Code="ADT" BookingTravelerRef="RRXV3cXAuDKAzco26BAAAA==">
                            <air:FareGuaranteeInfo GuaranteeType="ManualFare"/>
                        </air:PassengerType>
                        <common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAzco26BAAAA=="/>
                        <air:PaymentRef Key="oqeT3ci3nDKAtXOwjLAAAA=="/>
                        <air:TicketingModifiersRef Key="oqeT3ci3nDKAXCSwjLAAAA=="/>
                    </air:AirPricingInfo>
                    <common_v52_0:Payment Key="oqeT3ci3nDKA/tNwjLAAAA==" Type="Itinerary" Amount="KRW514500" ApproximateAmount="KRW514500" FormOfPaymentRef="oqeT3ci3nDKAktNwjLAAAA==" ElStat="A"/>
                    <common_v52_0:Payment Key="oqeT3ci3nDKAiDOwjLAAAA==" Type="Itinerary" Amount="KRW514500" ApproximateAmount="KRW514500" FormOfPaymentRef="oqeT3ci3nDKAnxNwjLAAAA==" ElStat="A"/>
                    <common_v52_0:Payment Key="oqeT3ci3nDKAtXOwjLAAAA==" Type="Itinerary" Amount="KRW396200" ApproximateAmount="KRW396200" FormOfPaymentRef="oqeT3ci3nDKAvMOwjLAAAA==" ElStat="A"/>
                    <air:TicketingModifiers PlatingCarrier="TG" Key="oqeT3ci3nDKAK2PwjLAAAA==" ElStat="A">
                        <common_v52_0:Commission Level="Fare" Type="PercentBase" Percentage="0.0"/>
                        <air:TicketEndorsement Value="REISSUE DUE TO SPELL CHNG."/>
                        <air:TicketEndorsement Value="NON END FLT DTE CHANGE REROUT"/>
                        <air:TicketEndorsement Value="CANCELLATION CHECK FARE RULE"/>
                        <air:DocumentSelect IssueElectronicTicket="true"/>
                    </air:TicketingModifiers>
                    <air:TicketingModifiers PlatingCarrier="TG" Key="oqeT3ci3nDKA79PwjLAAAA==" ElStat="A">
                        <common_v52_0:Commission Level="Fare" Type="PercentBase" Percentage="0.0"/>
                        <air:TicketEndorsement Value="REISSUE DUE TO SPELL CHNG."/>
                        <air:TicketEndorsement Value="NON END FLT DTE CHANGE REROUT"/>
                        <air:TicketEndorsement Value="CANCELLATION CHECK FARE RULE"/>
                        <air:DocumentSelect IssueElectronicTicket="true"/>
                    </air:TicketingModifiers>
                    <air:TicketingModifiers PlatingCarrier="TG" Key="oqeT3ci3nDKAXCSwjLAAAA==" ElStat="A">
                        <common_v52_0:Commission Level="Fare" Type="PercentBase" Percentage="0.0"/>
                        <air:TicketEndorsement Value="REISUE SPELL CHG NON END FLT"/>
                        <air:TicketEndorsement Value="DTE CHANGE REROUTE CANCELLA"/>
                        <air:TicketEndorsement Value="TION CHK FARE RULE DOB13MAY15"/>
                        <air:DocumentSelect IssueElectronicTicket="true"/>
                    </air:TicketingModifiers>
                </air:AirReservation>

            </universal:UniversalRecord>
        </universal:UniversalRecordRetrieveRsp>
    </SOAP:Body>
</SOAP:Envelope>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

<SOAP:Envelope xmlns:SOAP="http://schemas.xmlsoap.org/soap/envelope/">

<SOAP:Body>

<universal:UniversalRecordRetrieveRsp xmlns:universal="http://www.travelport.com/schema/universal_v52_0" xmlns:common_v52_0="http://www.travelport.com/schema/common_v52_0" xmlns:air="http://www.travelport.com/schema/air_v52_0" TraceId="trace" TransactionId="498CBCC40A0E7DE21E024FCA8F8FFF57" ResponseTime="2439">

<universal:UniversalRecord LocatorCode="2K744P" Version="4" Status="Active">

<common_v52_0:BookingTraveler Key="RRXV3cXAuDKAvco26BAAAA==">

<common_v52_0:BookingTravelerName First="SAMIL MS" Last="HOGN"/>

<common_v52_0:PhoneNumber Key="RRXV3cXAuDKAwco26BAAAA==" Type="Home" Location="SEL" Number="010 9804 7777">

<common_v52_0:ProviderReservationInfoRef Key="RRXV3cXAuDKAX4j26BAAAA=="/>

</common_v52_0:PhoneNumber>

<common_v52_0:PhoneNumber Key="RRXV3cXAuDKAxco26BAAAA==" Type="Email" Location="SEL" Number="sky0000@naver.com">

<common_v52_0:ProviderReservationInfoRef Key="RRXV3cXAuDKAX4j26BAAAA=="/>

</common_v52_0:PhoneNumber>

<common_v52_0:SSR Key="oqeT3ci3nDKAq2PwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880049C1" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>

<common_v52_0:SSR Key="oqeT3ci3nDKAr2PwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880049C2" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>

</common_v52_0:BookingTraveler>

<common_v52_0:BookingTraveler Key="RRXV3cXAuDKAyco26BAAAA==">

<common_v52_0:BookingTravelerName First="EUNCHAN MR" Last="HA"/>

<common_v52_0:SSR Key="oqeT3ci3nDKA7+PwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880803C1" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>

<common_v52_0:SSR Key="oqeT3ci3nDKA8+PwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880803C2" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>

</common_v52_0:BookingTraveler>

<common_v52_0:BookingTraveler Key="RRXV3cXAuDKAzco26BAAAA==">

<common_v52_0:BookingTravelerName First="EUNHOO MSTR" Last="HA"/>

<common_v52_0:SSR Key="oqeT3ci3nDKAYaSwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880821C1" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>

<common_v52_0:SSR Key="oqeT3ci3nDKAZaSwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA==" Status="HK" Type="TKNE" FreeText="2172888880821C2" Carrier="TG" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ElStat="A"/>

<common_v52_0:NameRemark Key="RRXV3cXAuDKA0co26BAAAA==">

<common_v52_0:RemarkData>P-C10 DOB13MAY15</common_v52_0:RemarkData>

<common_v52_0:ProviderReservationInfoRef Key="RRXV3cXAuDKAX4j26BAAAA=="/>

</common_v52_0:NameRemark>

</common_v52_0:BookingTraveler>

<common_v52_0:ServiceFeeInfo Key="oqeT3ci3nDKA18OwjLAAAA==" Confirmation="9540057998111" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TotalAmount="KRW30000" BookingTravelerName="HA/EUNCHAN MR"/>

<common_v52_0:ServiceFeeInfo Key="oqeT3ci3nDKA28OwjLAAAA==" Confirmation="9540057998110" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TotalAmount="KRW30000" BookingTravelerName="HOGN/SAMIL MS"/>

<common_v52_0:ServiceFeeInfo Key="oqeT3ci3nDKA38OwjLAAAA==" Confirmation="9540057998112" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TotalAmount="KRW30000" BookingTravelerName="HA/EUNHOO MSTR"/>

<common_v52_0:ActionStatus Key="RRXV3cXAuDKArco26BAAAA==" Type="ACTIVE" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" ProviderCode="1G">

<common_v52_0:Remark>SEL 05JUN0249Z E7 AG</common_v52_0:Remark>

</common_v52_0:ActionStatus>

<universal:ProviderReservationInfo Key="RRXV3cXAuDKAX4j26BAAAA==" ProviderCode="1G" LocatorCode="ABCDEF" CreateDate="2025-06-04T09:54:27.693+00:00" ModifiedDate="2025-06-07T08:40:51.766+00:00" HostCreateDate="2025-06-04" OwningPCC="7R4N">

<universal:ProviderReservationDisplayDetailsList>

<universal:DisplayDetails ProviderReservationDetail="true">

<universal:DisplayDetail Name="OwningAgencyPCC" Value="7R4N"/>

<universal:DisplayDetail Name="CreatingAgentSignOn" Value="7R4NS1"/>

<universal:DisplayDetail Name="CreatingAgentDuty" Value="AG"/>

<universal:DisplayDetail Name="CreatingAgencyIATA" Value="17305304"/>

<universal:DisplayDetail Name="PrepaidTicketAdviceIndicator" Value="N"/>

<universal:DisplayDetail Name="BFBorrowed" Value="N"/>

<universal:DisplayDetail Name="GlobalPNR" Value="N"/>

<universal:DisplayDetail Name="PastDateQuickRetrievedPNR" Value="N"/>

<universal:DisplayDetail Name="PNRPurgeDate" Value="20251014"/>

<universal:DisplayDetail Name="OriginalReceivedFieldValue" Value="P"/>

</universal:DisplayDetails>

</universal:ProviderReservationDisplayDetailsList>

</universal:ProviderReservationInfo>

<air:AirReservation xmlns:air="http://www.travelport.com/schema/air_v52_0" xmlns:common_v52_0="http://www.travelport.com/schema/common_v52_0" LocatorCode="AAAA4Q" CreateDate="2025-06-04T09:54:27.414+00:00" ModifiedDate="2025-06-07T08:40:51.766+00:00">

<common_v52_0:SupplierLocator SupplierCode="TG" SupplierLocatorCode="AAAKVM" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" CreateDateTime="2025-06-04T08:16:00.000+00:00"/>

<common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAvco26BAAAA=="/>

<common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAyco26BAAAA=="/>

<common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAzco26BAAAA=="/>

<common_v52_0:ProviderReservationInfoRef Key="RRXV3cXAuDKAX4j26BAAAA=="/>

<air:AirSegment Key="RRXV3cXAuDKA3co26BAAAA==" Group="0" Carrier="TG" CabinClass="Economy" FlightNumber="659" ProviderCode="1G" Origin="ICN" Destination="BKK" DepartureTime="2025-10-05T09:35:00.000+09:00" ArrivalTime="2025-10-05T13:25:00.000+07:00" TravelTime="350" ClassOfService="V" ETicketability="No" Equipment="359" Status="HK" ChangeOfPlane="false" GuaranteedPaymentCarrier="No" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TravelOrder="1" ProviderSegmentOrder="1" OptionalServicesIndicator="false">

<air:FlightDetails Key="oqeT3ci3nDKA4dUwjLAAAA==" Origin="ICN" Destination="BKK" DepartureTime="2025-10-05T09:35:00.000+09:00" ArrivalTime="2025-10-05T13:25:00.000+07:00" FlightTime="350" TravelTime="350" Equipment="359" OriginTerminal="1" AutomatedCheckin="false" ElStat="A"/>

</air:AirSegment>

<air:AirSegment Key="RRXV3cXAuDKA7co26BAAAA==" Group="1" Carrier="TG" CabinClass="Economy" FlightNumber="658" ProviderCode="1G" Origin="BKK" Destination="ICN" DepartureTime="2025-10-12T23:10:00.000+07:00" ArrivalTime="2025-10-13T06:35:00.000+09:00" TravelTime="325" ClassOfService="W" ETicketability="No" Equipment="359" Status="HK" ChangeOfPlane="false" GuaranteedPaymentCarrier="No" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" TravelOrder="2" ProviderSegmentOrder="2" OptionalServicesIndicator="false">

<air:FlightDetails Key="oqeT3ci3nDKA5dUwjLAAAA==" Origin="BKK" Destination="ICN" DepartureTime="2025-10-12T23:10:00.000+07:00" ArrivalTime="2025-10-13T06:35:00.000+09:00" FlightTime="325" TravelTime="325" Equipment="359" DestinationTerminal="1" AutomatedCheckin="false" ElStat="A"/>

</air:AirSegment>

<air:AirPricingInfo Key="oqeT3ci3nDKA48OwjLAAAA==" TotalPrice="KRW514500" BasePrice="KRW473100" ApproximateTotalPrice="KRW514500" ApproximateBasePrice="KRW473100" Taxes="KRW41400" PricingMethod="ManualFare" ETicketability="No" ProviderCode="1G" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" AirPricingInfoGroup="1" Ticketed="true" PricingType="StoredFare" ElStat="A" FareCalculationInd="B">

<air:FareInfo Key="oqeT3ci3nDKAl2PwjLAAAA==" FareBasis="VLRST" PassengerTypeCode="ADT" Origin="ICN" Destination="BKK" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-05" NotValidAfter="2025-10-05" ElStat="A">

<air:BaggageAllowance>

<air:MaxWeight Value="25" Unit="Kilograms"/>

</air:BaggageAllowance>

</air:FareInfo>

<air:FareInfo Key="oqeT3ci3nDKAn2PwjLAAAA==" FareBasis="WLRSV" PassengerTypeCode="ADT" Origin="BKK" Destination="ICN" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-12" NotValidAfter="2025-10-12" ElStat="A">

<air:BaggageAllowance>

<air:MaxWeight Value="25" Unit="Kilograms"/>

</air:BaggageAllowance>

</air:FareInfo>

<air:BookingInfo BookingCode="V" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAl2PwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA=="/>

<air:BookingInfo BookingCode="W" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAn2PwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA=="/>

<air:TaxInfo Category="XP" Amount="KRW41400" Key="oqeT3ci3nDKAp2PwjLAAAA=="/>

<air:FareCalc>SEL TG BKK 174.39 TG SEL 158.53 NUC332.92 END ROE1420.87694</air:FareCalc>

<air:PassengerType Code="ADT" BookingTravelerRef="RRXV3cXAuDKAvco26BAAAA==">

<air:FareGuaranteeInfo GuaranteeType="ManualFare"/>

</air:PassengerType>

<common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAvco26BAAAA=="/>

<air:PaymentRef Key="oqeT3ci3nDKA/tNwjLAAAA=="/>

<air:TicketingModifiersRef Key="oqeT3ci3nDKAK2PwjLAAAA=="/>

</air:AirPricingInfo>

<air:AirPricingInfo Key="oqeT3ci3nDKAt2PwjLAAAA==" TotalPrice="KRW514500" BasePrice="KRW473100" ApproximateTotalPrice="KRW514500" ApproximateBasePrice="KRW473100" Taxes="KRW41400" PricingMethod="ManualFare" ETicketability="No" ProviderCode="1G" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" AirPricingInfoGroup="2" Ticketed="true" PricingType="StoredFare" ElStat="A" FareCalculationInd="B">

<air:FareInfo Key="oqeT3ci3nDKAg+PwjLAAAA==" FareBasis="VLRST" PassengerTypeCode="ADT" Origin="ICN" Destination="BKK" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-05" NotValidAfter="2025-10-05" ElStat="A">

<air:BaggageAllowance>

<air:MaxWeight Value="25" Unit="Kilograms"/>

</air:BaggageAllowance>

</air:FareInfo>

<air:FareInfo Key="oqeT3ci3nDKAi+PwjLAAAA==" FareBasis="WLRSV" PassengerTypeCode="ADT" Origin="BKK" Destination="ICN" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-12" NotValidAfter="2025-10-12" ElStat="A">

<air:BaggageAllowance>

<air:MaxWeight Value="25" Unit="Kilograms"/>

</air:BaggageAllowance>

</air:FareInfo>

<air:BookingInfo BookingCode="V" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAg+PwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA=="/>

<air:BookingInfo BookingCode="W" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAi+PwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA=="/>

<air:TaxInfo Category="XP" Amount="KRW41400" Key="oqeT3ci3nDKA6+PwjLAAAA=="/>

<air:FareCalc>SEL TG BKK 174.39 TG SEL 158.53 NUC332.92 END ROE1420.87694</air:FareCalc>

<air:PassengerType Code="ADT" BookingTravelerRef="RRXV3cXAuDKAyco26BAAAA==">

<air:FareGuaranteeInfo GuaranteeType="ManualFare"/>

</air:PassengerType>

<common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAyco26BAAAA=="/>

<air:PaymentRef Key="oqeT3ci3nDKAiDOwjLAAAA=="/>

<air:TicketingModifiersRef Key="oqeT3ci3nDKA79PwjLAAAA=="/>

</air:AirPricingInfo>

<air:AirPricingInfo Key="oqeT3ci3nDKAQuRwjLAAAA==" TotalPrice="KRW396200" BasePrice="KRW354800" ApproximateTotalPrice="KRW396200" ApproximateBasePrice="KRW354800" Taxes="KRW41400" PricingMethod="ManualFare" ETicketability="No" ProviderCode="1G" ProviderReservationInfoRef="RRXV3cXAuDKAX4j26BAAAA==" AirPricingInfoGroup="3" Ticketed="true" PricingType="StoredFare" ElStat="A" FareCalculationInd="B">

<air:FareInfo Key="oqeT3ci3nDKAIYSwjLAAAA==" FareBasis="VLRST" PassengerTypeCode="ADT" Origin="ICN" Destination="BKK" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-05" NotValidAfter="2025-10-05" ElStat="A">

<air:FareTicketDesignator Value="CH"/>

<air:BaggageAllowance>

<air:MaxWeight Value="25" Unit="Kilograms"/>

</air:BaggageAllowance>

</air:FareInfo>

<air:FareInfo Key="oqeT3ci3nDKAJaSwjLAAAA==" FareBasis="WLRSV" PassengerTypeCode="ADT" Origin="BKK" Destination="ICN" EffectiveDate="2025-06-05T00:00:00.000+09:00" NegotiatedFare="false" NotValidBefore="2025-10-12" NotValidAfter="2025-10-12" ElStat="A">

<air:FareTicketDesignator Value="CH"/>

<air:BaggageAllowance>

<air:MaxWeight Value="25" Unit="Kilograms"/>

</air:BaggageAllowance>

</air:FareInfo>

<air:BookingInfo BookingCode="V" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAIYSwjLAAAA==" SegmentRef="RRXV3cXAuDKA3co26BAAAA=="/>

<air:BookingInfo BookingCode="W" CabinClass="Economy" FareInfoRef="oqeT3ci3nDKAJaSwjLAAAA==" SegmentRef="RRXV3cXAuDKA7co26BAAAA=="/>

<air:TaxInfo Category="XP" Amount="KRW41400" Key="oqeT3ci3nDKATaSwjLAAAA=="/>

<air:FareCalc>SEL TG BKK 130.79 TG SEL 118.90 NUC249.69 END ROE1420.87694</air:FareCalc>

<air:PassengerType Code="ADT" BookingTravelerRef="RRXV3cXAuDKAzco26BAAAA==">

<air:FareGuaranteeInfo GuaranteeType="ManualFare"/>

</air:PassengerType>

<common_v52_0:BookingTravelerRef Key="RRXV3cXAuDKAzco26BAAAA=="/>

<air:PaymentRef Key="oqeT3ci3nDKAtXOwjLAAAA=="/>

<air:TicketingModifiersRef Key="oqeT3ci3nDKAXCSwjLAAAA=="/>

</air:AirPricingInfo>

<common_v52_0:Payment Key="oqeT3ci3nDKA/tNwjLAAAA==" Type="Itinerary" Amount="KRW514500" ApproximateAmount="KRW514500" FormOfPaymentRef="oqeT3ci3nDKAktNwjLAAAA==" ElStat="A"/>

<common_v52_0:Payment Key="oqeT3ci3nDKAiDOwjLAAAA==" Type="Itinerary" Amount="KRW514500" ApproximateAmount="KRW514500" FormOfPaymentRef="oqeT3ci3nDKAnxNwjLAAAA==" ElStat="A"/>

<common_v52_0:Payment Key="oqeT3ci3nDKAtXOwjLAAAA==" Type="Itinerary" Amount="KRW396200" ApproximateAmount="KRW396200" FormOfPaymentRef="oqeT3ci3nDKAvMOwjLAAAA==" ElStat="A"/>

<air:TicketingModifiers PlatingCarrier="TG" Key="oqeT3ci3nDKAK2PwjLAAAA==" ElStat="A">

<common_v52_0:Commission Level="Fare" Type="PercentBase" Percentage="0.0"/>

<air:TicketEndorsement Value="REISSUE DUE TO SPELL CHNG."/>

<air:TicketEndorsement Value="NON END FLT DTE CHANGE REROUT"/>

<air:TicketEndorsement Value="CANCELLATION CHECK FARE RULE"/>

<air:DocumentSelect IssueElectronicTicket="true"/>

</air:TicketingModifiers>

<air:TicketingModifiers PlatingCarrier="TG" Key="oqeT3ci3nDKA79PwjLAAAA==" ElStat="A">

<common_v52_0:Commission Level="Fare" Type="PercentBase" Percentage="0.0"/>

<air:TicketEndorsement Value="REISSUE DUE TO SPELL CHNG."/>

<air:TicketEndorsement Value="NON END FLT DTE CHANGE REROUT"/>

<air:TicketEndorsement Value="CANCELLATION CHECK FARE RULE"/>

<air:DocumentSelect IssueElectronicTicket="true"/>

</air:TicketingModifiers>

<air:TicketingModifiers PlatingCarrier="TG" Key="oqeT3ci3nDKAXCSwjLAAAA==" ElStat="A">

<common_v52_0:Commission Level="Fare" Type="PercentBase" Percentage="0.0"/>

<air:TicketEndorsement Value="REISUE SPELL CHG NON END FLT"/>

<air:TicketEndorsement Value="DTE CHANGE REROUTE CANCELLA"/>

<air:TicketEndorsement Value="TION CHK FARE RULE DOB13MAY15"/>

<air:DocumentSelect IssueElectronicTicket="true"/>

</air:TicketingModifiers>

</air:AirReservation>

</universal:UniversalRecord>

</universal:UniversalRecordRetrieveRsp>

</SOAP:Body>

</SOAP:Envelope>

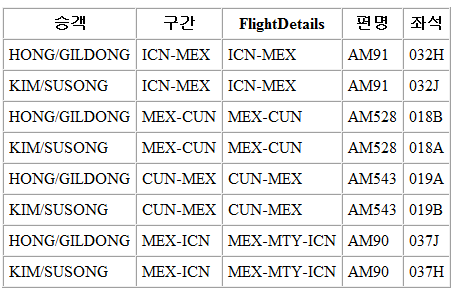

XSLT 로 여정표 생성

XSLT (AI 로 생성)


<?xml version="1.0" encoding="UTF-8"?>
<xsl:stylesheet version="1.0"
  xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
  xmlns:SOAP="http://schemas.xmlsoap.org/soap/envelope/"
  xmlns:universal="http://www.travelport.com/schema/universal_v52_0"
  xmlns:common="http://www.travelport.com/schema/common_v52_0"
  xmlns:air="http://www.travelport.com/schema/air_v52_0"
  exclude-result-prefixes="SOAP universal common air">

  <xsl:output method="html" encoding="UTF-8" indent="yes"/>

  <xsl:template match="/">
    <html>
      <head>
        <meta http-equiv="X-UA-Compatible" content="IE=Edge;" />
        <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="preconnect" href="https://fonts.googleapis.com" />
        <link rel="preconnect" href="https://fonts.gstatic.com" />
        <link href="https://fonts.googleapis.com/css2?family=Noto+Sans+KR:wght@400;700&amp;family=Noto+Sans:wght@700&amp;display=swap" rel="stylesheet" />
      </head>
      <body>
        <div id="content-to-print" style="text-align:left;">
          <table align="center" class="print-style" style="width:600px;border-collapse:collapse; margin: 0 auto;">
            <tr>
              <td style="width:600px; padding:10px;background-color: #FCF2E7 !important; print-color-adjust: exact;">
                <table style="width:600px;border-collapse:collapse;">
                  <tr>
                    <td>
                      <h1 style="font-family: 'Noto Sans KR', -apple-system, 'Malgun Gothic'; font-size: 20px; color: #111111; margin: 12px 0 6px 0;">갈릴레오코리아</h1>
                      <p style="font-family: Arial, sans-serif; font-size: 12px; color: #555555;">직원 (02-3210-2350)</p>
                    </td>
                    <td align="center" style="width:30%;">
                      <table style="width:100%;border-collapse:collapse; padding:0; margin: 0;">
                        <tr align="right">
                          <td style="width: 150px; height: 18px; padding: 0; display: block;">
                            <img style="width: 150px; height: 18px; display: block;" src="https://uapisupport.travelport.co.kr/images/travelport.png" alt="" />
                          </td>
                        </tr>
                        <tr align="right">
                          <td>
                            <p style="font-family: 'Arial', 'Apple SD Gothic Neo'; font-size: 11px; color: #777777; margin: 0;">Itinerary</p>
                          </td>
                        </tr>
                        <tr align="right">
                          <td>
                            <p style="font-family: 'Noto Sans KR', -apple-system, 'Malgun Gothic', 'Dotum'; font-size: 11px; color: #777777; margin: 0;">
                              항공권 예약일 :
                              <xsl:value-of select="substring(//universal:ProviderReservationInfo/@CreateDate,1,10)"/>
                            </p>
                          </td>
                        </tr>
                      </table>
                    </td>
                  </tr>
                </table>
              </td>
            </tr>
            <tr>
              <td style="width:100%; padding:20px 10px 20px 10px;">
                <table style="width:100%;padding:0px;border-collapse:collapse;">
                  <tr>
                    <td style="width:50%; padding: 0; padding-right: 8px;">
                      <h5 style="margin:0px 0px 10px 0px;font-family: 'Noto Sans KR', sans-serif; font-size: 13px; font-weight: bold; color: #4E6659;">
                        승객정보
                        <span style="font-size: 12px; color: #aaaaaa;">Passenger Information</span>
                      </h5>
                    </td>
                    <td style="width:50%; padding: 0; text-align:right;">
                      <h5 style="font-size: 12px; color: #aaaaaa;">
                        예약번호 <span style="font-size: 10px; color: #aaaaaa;">Booking Reference</span>
                        <span style="font-size: 12px; color: #4E6659;">
                          <xsl:value-of select="//universal:ProviderReservationInfo/@LocatorCode"/>
                        </span>
                      </h5>
                    </td>
                  </tr>
                </table>
                <hr style="height: 2px; background-color: #4E6659; border: none;" />
                <table style="width:100%; border-collapse:collapse;">
                  <tr>
                    <td style="font-size: 12px; color: #555555;">No.</td>
                    <td style="font-size: 12px; color: #555555;">승객명</td>
                    <td style="font-size: 12px; color: #555555;">마일리지</td>
                  </tr>
                  <xsl:for-each select="//common:BookingTraveler">
                    <tr>
                      <td style="font-size: 12px; color: #555555;">
                        <xsl:number count="common:BookingTraveler" format="01"/>
                      </td>
                      <td style="font-size: 12px; color: #555555;">
                        <xsl:value-of select="concat(common:BookingTravelerName/@Last, '/', common:BookingTravelerName/@First)"/>
                      </td>
                      <td style="font-size: 12px; color: #555555;">-</td>
                    </tr>
                  </xsl:for-each>
                </table>
              </td>
            </tr>
            <tr>
              <td style="width:100%; padding:0px 10px 20px 10px;">
                <table style="width:100%;padding:0px;border-collapse:collapse;">
                  <tr>
                    <td colspan="5" style="width:100%; padding:0px; word-break: break-all;">
                      <h5 style="margin:0px 0px 10px 0px;font-family: 'Noto Sans KR', sans-serif; font-size: 13px; font-weight: bold; color: #4E6659;">
                        여정
                        <span style="font-family: Arial, sans-serif; font-size: 12px; font-weight: bold; color: #aaaaaa;">Itinerary</span>
                      </h5>
                    </td>
                  </tr>
                  <xsl:for-each select="//air:AirSegment">
                    <tr style="background-color:#EDF0EE;">
                      <td colspan="5" style="padding:10px;">
                        <p><strong>편명:</strong> <xsl:value-of select="@Carrier"/> <xsl:value-of select="@FlightNumber"/></p>
                        <p><strong>항공사 예약번호:</strong> <xsl:value-of select="../../air:AirReservation/common:SupplierLocator/@SupplierLocatorCode"/></p>
                        <p><strong>출발:</strong> <xsl:value-of select="@Origin"/> at <xsl:value-of select="@DepartureTime"/></p>
                        <p><strong>도착:</strong> <xsl:value-of select="@Destination"/> at <xsl:value-of select="@ArrivalTime"/></p>
                        <p><strong>클래스:</strong> <xsl:value-of select="@ClassOfService"/> (일반석)</p>
                        <p><strong>예약상태:</strong> <xsl:choose><xsl:when test="@Status='HK'">OK(확약)</xsl:when><xsl:otherwise><xsl:value-of select="@Status"/></xsl:otherwise></xsl:choose></p>
                        <p><strong>기종:</strong> Airbus Industrie A<xsl:value-of select="@Equipment"/></p>
                        <p><strong>비행시간:</strong> <xsl:value-of select="floor(@TravelTime div 60)"/>시간 <xsl:value-of select="@TravelTime mod 60"/>분</p>
                      </td>
                    </tr>
                  </xsl:for-each>
                </table>
              </td>
            </tr>
          </table>
        </div>
      </body>
    </html>
  </xsl:template>
</xsl:stylesheet>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

<?xml version="1.0" encoding="UTF-8"?>

<xsl:stylesheet version="1.0"

xmlns:xsl="http://www.w3.org/1999/XSL/Transform"

xmlns:SOAP="http://schemas.xmlsoap.org/soap/envelope/"

xmlns:universal="http://www.travelport.com/schema/universal_v52_0"

xmlns:common="http://www.travelport.com/schema/common_v52_0"

xmlns:air="http://www.travelport.com/schema/air_v52_0"

exclude-result-prefixes="SOAP universal common air">

<xsl:output method="html" encoding="UTF-8" indent="yes"/>

<xsl:template match="/">

<html>

<head>

</head>

<body>

<tr>

<tr>

<td>

<h1 style="font-family: 'Noto Sans KR', -apple-system, 'Malgun Gothic'; font-size: 20px; color: #111111; margin: 12px 0 6px 0;">갈릴레오코리아</h1>

</td>

</td>

</tr>

<td>

<p style="font-family: 'Arial', 'Apple SD Gothic Neo'; font-size: 11px; color: #777777; margin: 0;">Itinerary</p>

</td>

</tr>

<td>

항공권 예약일 :

<xsl:value-of select="substring(//universal:ProviderReservationInfo/@CreateDate,1,10)"/>

</p>

</td>

</tr>

</table>

</td>

</tr>

</table>

</td>

</tr>

<tr>

<tr>

승객정보

<span style="font-size: 12px; color: #aaaaaa;">Passenger Information</span>

</h5>

</td>

예약번호 <span style="font-size: 10px; color: #aaaaaa;">Booking Reference</span>

<xsl:value-of select="//universal:ProviderReservationInfo/@LocatorCode"/>

</span>

</h5>

</td>

</tr>

</table>

<tr>

</tr>

<xsl:for-each select="//common:BookingTraveler">

<tr>

<xsl:number count="common:BookingTraveler" format="01"/>

</td>

<xsl:value-of select="concat(common:BookingTravelerName/@Last, '/', common:BookingTravelerName/@First)"/>

</td>

</tr>

</xsl:for-each>

</table>

</td>

</tr>

<tr>

<tr>

여정

<span style="font-family: Arial, sans-serif; font-size: 12px; font-weight: bold; color: #aaaaaa;">Itinerary</span>

</h5>

</td>

</tr>

<xsl:for-each select="//air:AirSegment">

<p><strong>기종:</strong> Airbus Industrie A<xsl:value-of select="@Equipment"/></p>

</td>

</tr>

</xsl:for-each>

</table>

</td>

</tr>

</table>

</div>

</body>

</html>

</xsl:template>

</xsl:stylesheet>

Translate 결과

본사에서 제공하는 서비스

Live : https://viewtrip.travelport.com/
Test : https://viewtrip.pp.travelport.com/

UniversalRecordRetrieve

Overview:

기본 조회

ViewOnlyInd (default : false)

UniversalRecordRetrieveRsp

XSLT 로 여정표 생성

XSLT (AI 로 생성)

Translate 결과

본사에서 제공하는 서비스

로컬 갈릴레오에서 제공되는 asp 서버스
